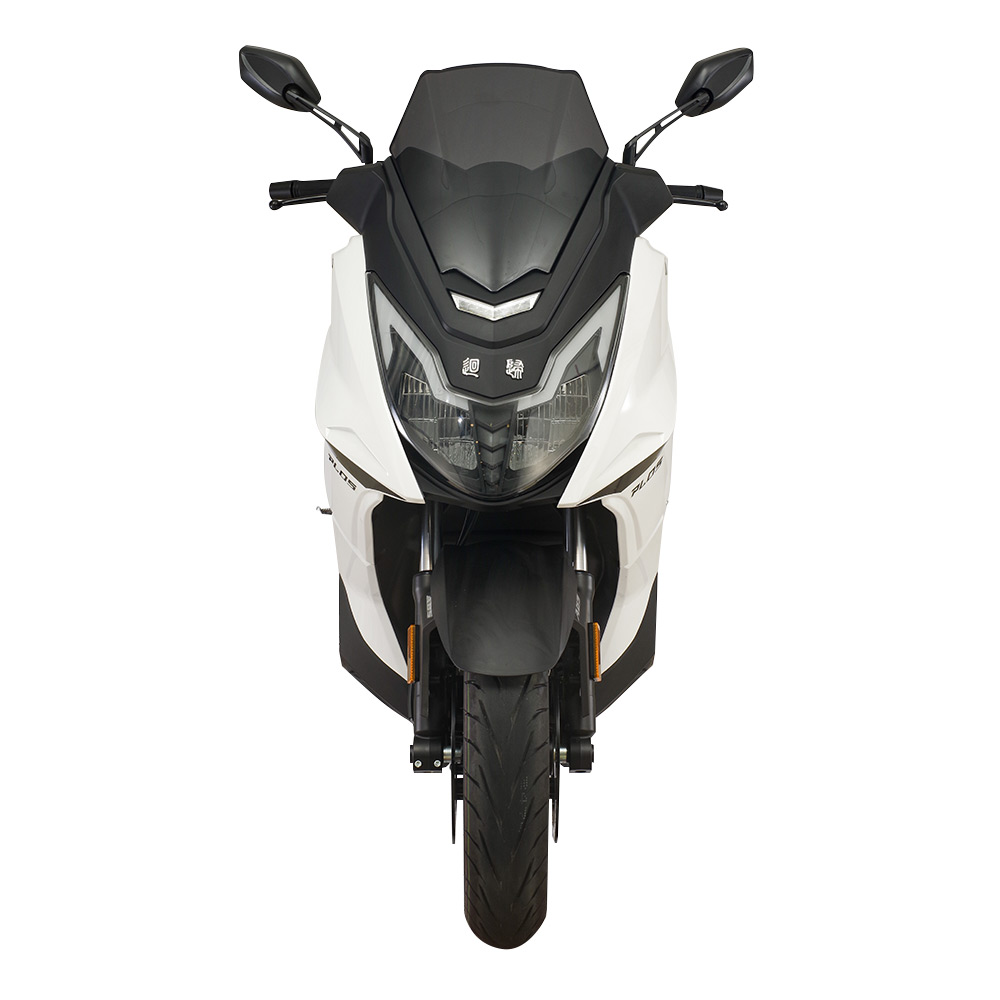

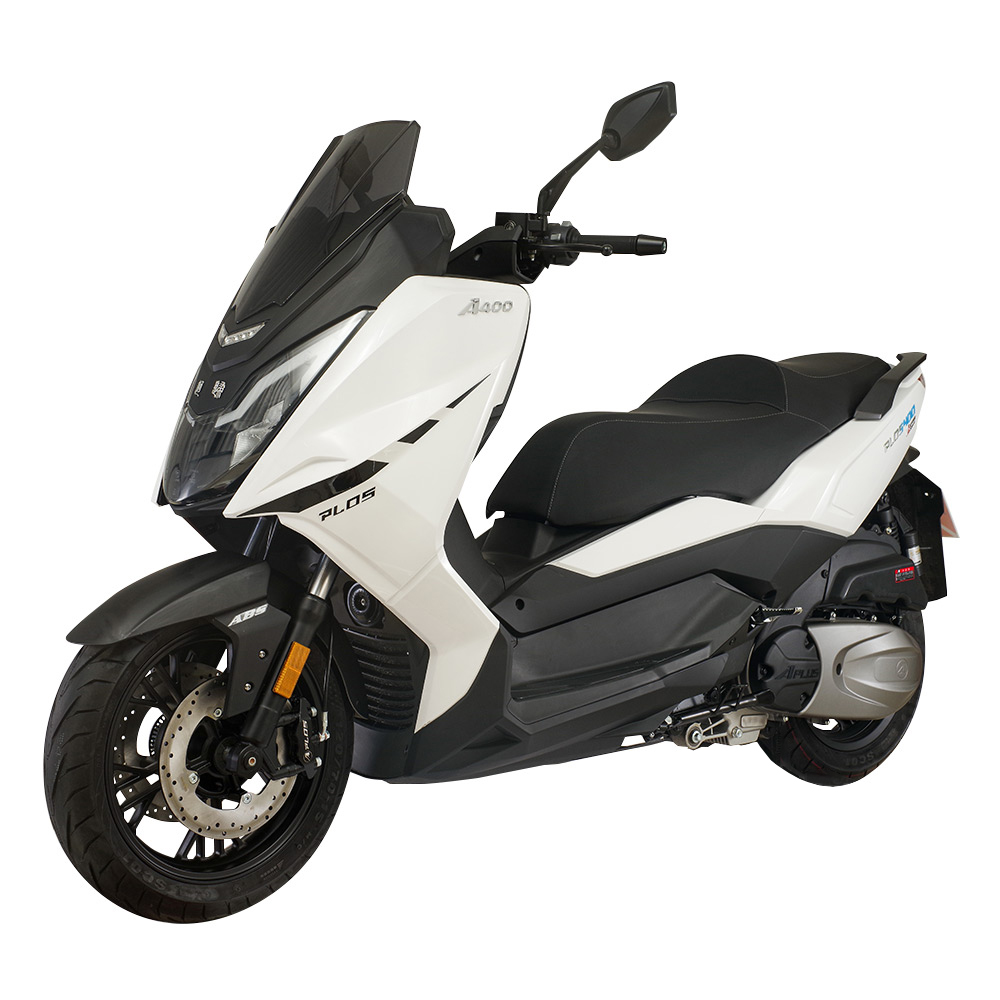

Specification
| Engine | 399CC |
| Type | 1-cylinder 4-stroke 4-valve water-cooling |
| BorexStroke (mm) | 84x72 |
| Compression | 10.5:1 |
| Output, Max(Kw/Rpm) | 22.6/6500 |
| Torque, Max(N.M/Rpm) | 29.5/5500 |
| Lgnition | West CDI |
| Starting System | One-click start |
| Gear and Clutch | CTV infinitely shifts CTV |
| Drive Train | Belt drive |
Chassis
| Suspension/Front | Hydraulic Spring Shock |
| Suspension/Rear | Hydraulic Spring Shock |
| Brakes/Front | ABS double disc |
| Brakes/Rear | ABS disc |
| Tires/Front | 120/70-15 |
| Tires/Rear | 140/70-14 |
Dimensions
| LxWxH (mm) | 2248x800x1308 |
| Wheelbase (mm) | 1550 |
| Min ground clearance (mm) | 155 |
| Net Weight (kg) | 181 |
| Max Load (kg) | 158 |
| Max Speed (km/h) | 135 |
| Climbing Ability (°) | / |
| Fuel Tank Capacity (L) | 13.5L |
| Fuel Type | Unleaded Gasoline With Octane No. 90 Or Higher |
| Battery | / |
| Quantity(40HQ) | / |
| Price ($) | US：$ |
Color optional
| RED | BLACK | WHITE | BLUE |
Main Specification
Front and rear ABS disc brakes, one-button start, special status
